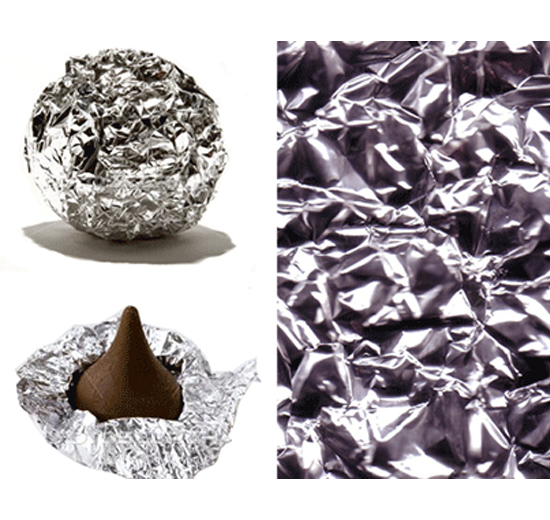

Aluminum foil blank
Product Usage
For further processing
Product details
Common thickness: 0.2-0.3 mm
width:
alloy:3003、8006、8011、8079
status：H18
Treatment: smooth
Die: 505 mm inner diameter
Core material: paper core
Type: Volume
standard：GB/T3198-2003
Product mechanical properties
|
alloy |
status |
thickness（mm） |
Tensile test results |
|
|
tensile strength(Mpa) |
Elongation A /% is not less than |
|||
|
3003 |
H18 |
0.2-0.3 |
Min. 175 Max. 215 |
Min. 1% |
|
8006 |
0.2-0.3 |
Min. 145 Max. 185 |
Min. 2% |
|
|
8011 |
0.2-0.3 |
Min. 145 Max. 185 |
Min. 1% |
|
Product thickness（T）
|
Aluminum foil thickness range |
0.2-0.3mm |
|||||
|
Thickness of conventional aluminum alloy aluminum foil（mm） |
|
|
|
|
|
|
Product size tolerance
|
size |
Allowable thickness tolerance（%） |
Allowable width tolerance（mm） |
|
tolerance |
+/-5 |
+1, -0 |
Pinhole requirements
Variety Thickness (mm) |
Number of pinholes |
Aluminum foil blank |
|
9.0-9.9 |
100 |
10.0-10.9 |
50 |
11.0-11.9 |
40 |
12.0-12.9 |
30 |
13.0-13.9 |
20 |
14.0-17.9 |
10 |
＞18.0 |
0 |
