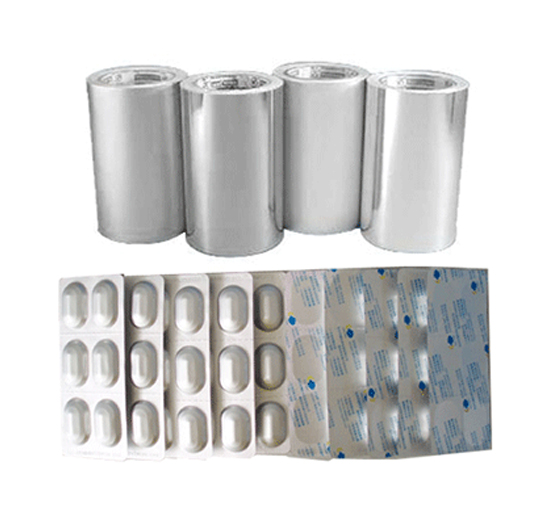

Medicinal and flexible aluminum foil
Product Usage
For pharmaceutical and food packaging
Product details
Common thickness: 0.0060--0.080 mm
width:
alloy：8011、1235、8079
status：O、H18
Die: 75 mm or 150 mm ID
Core material: steel, aluminum core
Processing: smooth or composite
Type: Volume
standard：GB/T3198-2003
Product mechanical properties
|
alloy |
status |
thickness（mm） |
Tensile test results |
|
|
tensile strength(Mpa) |
Elongation A /% is not less than |
|||
|
1235 |
O |
0.006-0.007 |
60-80 |
＞0.5 |
|
＞0.007-0.009 |
60-80 |
＞1.0 |
||
|
＞0.009-0.020 |
60-80 |
＞1.0 |
||
|
8011 |
O |
0.009-0.030 |
80-100 |
＞2.0 |
|
0.009-0.080 |
≥75 |
≥3.0 |
||
Product thickness（T）
|
Thickness range of aluminum alloy medical aluminum foil and flexible aluminum foil |
0.0060-0.080mm |
|||||
|
Conventional aluminum alloy medicinal aluminum foil and flexible aluminum foil thickness（mm） |
|
|
|
|
|
|
Product size tolerance
|
size |
Allowable thickness tolerance（%） |
Allowable width tolerance（mm） |
|
tolerance |
+/-5 |
+1, -0 |
Pinhole requirements
|
Variety Thickness (mm) |
Number of pinholes |
|
Medical aluminum foil and flexible aluminum foil |
|
|
0.0060 |
800 |
|
0.0065 |
400 |
|
0.007 |
300 |
|
0.0075 |
50 |
|
0.009 |
30 |
|
＞0.009-0.011 |
20 |
|
＞0.011-0.015 |
10 |
|
＞0.015-0.020 |
5 |
|
＞0.020-0.050 |
0 |
|
＞0.050 |
0 |
