Product Center
Heat-sealed aluminum foil
Product Usage

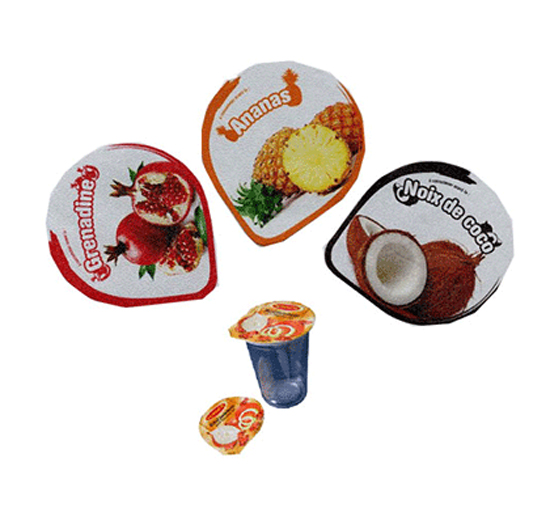

For hot capping of beverages such as yogurt and juice
Product details
Common thickness: 0.020—0.060 mm
width:
Alloy: 8011
Status: O
Treatment: smooth
Die: 75 mm or 150 mm ID
Core material: steel, aluminum core
Type: Volume
Standard: GB / T3198-2003
Product mechanical properties
|
alloy |
status |
thickness（mm） |
Tensile test results |
|
|
tensile strength(Mpa) |
Elongation A /% is not less than |
|||
|
8011 |
O |
0.020-0.060 |
70-105 |
≥4.0 |
Product thickness（T）
|
Thickness range of aluminum alloy heat seal foil |
0.020-0.060mm |
|||||
|
Thickness of conventional aluminum alloy heat seal foil（mm） |
|
|||||
Product size tolerance
|
size |
Allowable thickness tolerance（%） |
Allowable width tolerance（mm） |
|
tolerance |
+/-5 |
+1, -0 |
Pinhole requirements
|
Varietythickness（mm） |
Number of pinholes |
|
Heat seal foil |
|
|
＞0.020-0.050 |
0 |
|
＞0.050 |
0 |
