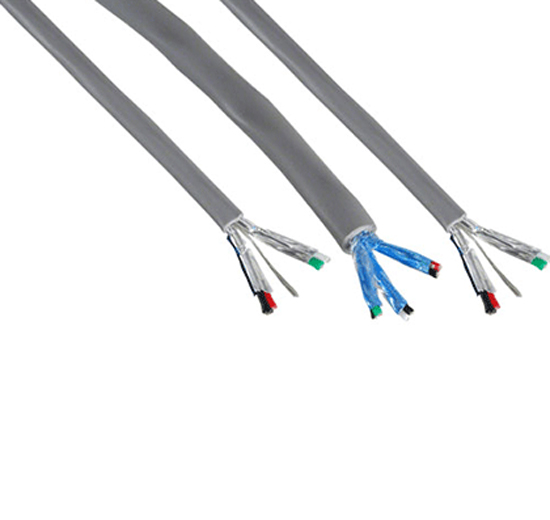

Video cable aluminum foil
Product Usage
For video cable shielding with aluminum tape
Product details
Common thickness: 0.0065--0.050 mm
width：
alloy：8011、1235、1145、8079
status：O
Processing: light aluminum
Die: 75 mm or 150 mm ID
Core material: steel, aluminum core
Type: Volume
standard：GB/T3198-2003
Product mechanical properties
|
alloy |
status |
thickness（mm） |
Tensile test results |
|
|
tensile strength(Mpa) |
Elongation A /% is not less than |
|||
|
8011 1235 1145 8079 |
O |
0.0065-0.050 |
40-80 |
≥2.0 |
Product thickness（T）
|
Aluminum alloy video cable foil thickness range |
0.0065-0.050mm |
|||||
|
Thickness of conventional aluminum alloy video cable foil (mm) |
0.0065 |
0.007 |
0.009 |
0.012 |
|
|
Product size tolerance
|
size |
Allowable thickness tolerance（%） |
Allowable width tolerance（mm） |
|
tolerance |
+/-5 |
+1, -0 |
Pinhole requirements
|
Variety thickness（mm） |
Number of pinholes |
|
Video cable foil |
|
|
0.0065 |
400 |
|
0.007 |
300 |
|
0.0075 |
50 |
|
0.009 |
30 |
|
＞0.009-0.011 |
20 |
|
＞0.011-0.015 |
10 |
|
＞0.015-0.020 |
5 |
|
＞0.020-0.050 |
0 |
