Product Center

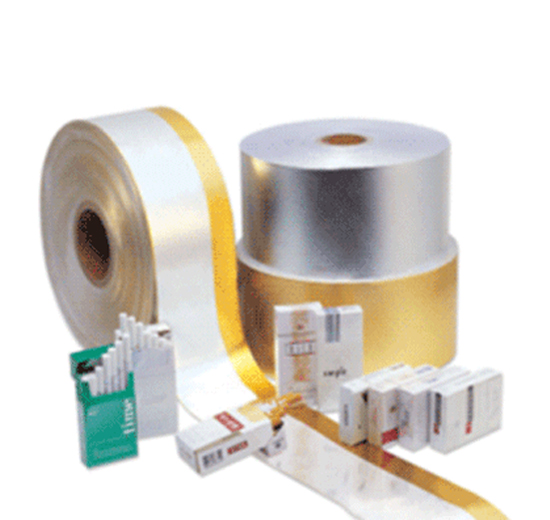

Smoke foil aluminum foil
Product Usage
Used for cigarette packaging after liner
Product details
Common thickness: 0.006--0.007 mm
width：
alloy：1235
status：O
Treatment: smooth
Die: 75 mm or 150 mm ID
Core material: steel, aluminum core
Type: Volume
standard：GB/T3198-2003
Product mechanical properties
|
alloy |
status |
thickness（mm） |
Tensile test results |
|
|
tensile strength(Mpa) |
Elongation A /% is not less than |
|||
|
1235 |
O |
0.006-0.007 |
50-70 |
≥2.0 |
Product thickness（T）
|
Aluminum foil thickness range |
0.006-0.007mm |
|||||
|
Conventional aluminum alloy foil thickness（mm） |
|
|
|
|
|
|
Product size tolerance
|
size |
Allowable thickness tolerance（%） |
Allowable width tolerance（mm） |
|
tolerance |
+/-5 |
+1, -0 |
Pinhole requirements
|
Variety thickness（mm） |
Number of pinholes |
|
Cigarette foil |
|
|
0.006 |
1500 |
|
0.0065 |
600 |
|
0.007 |
600 |
